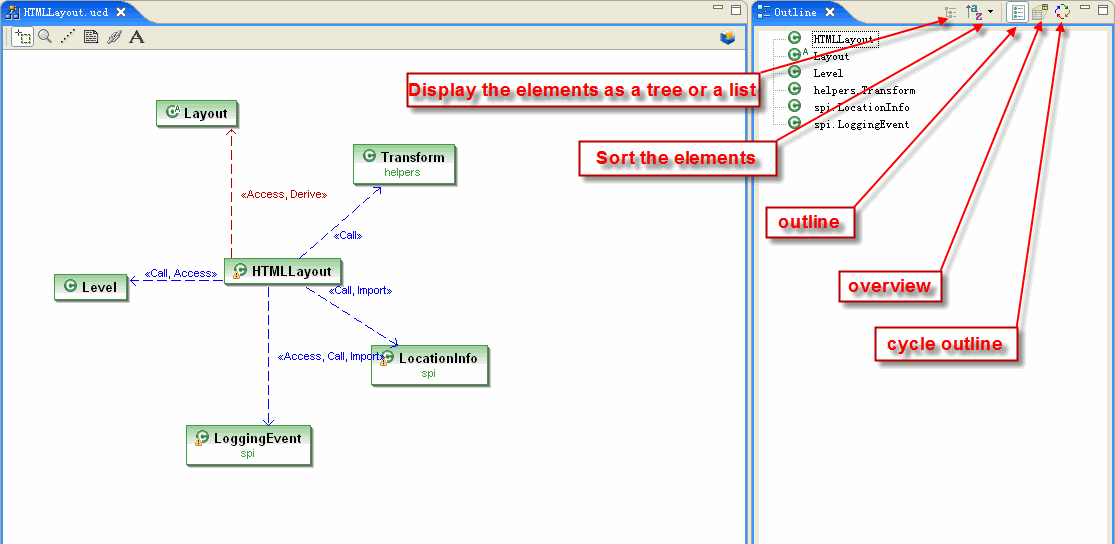

The class/package dependency diagram outline has three pages : outline page , overview page, cycle outline page and two button.
1. outline
This page shows a tree of all elements on the diagram .

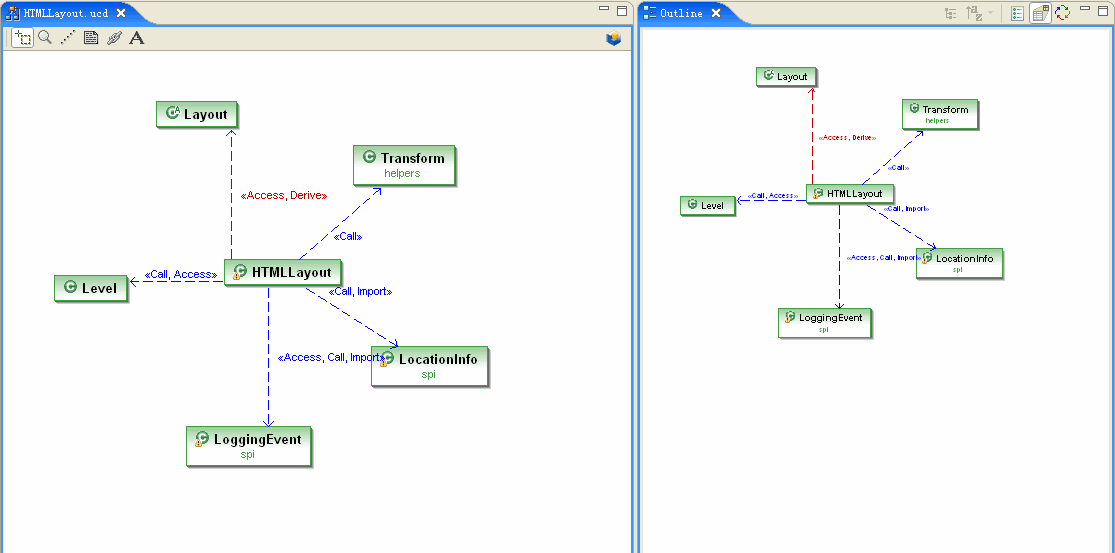

2. overview
This page shows a thumbnail of diagram .

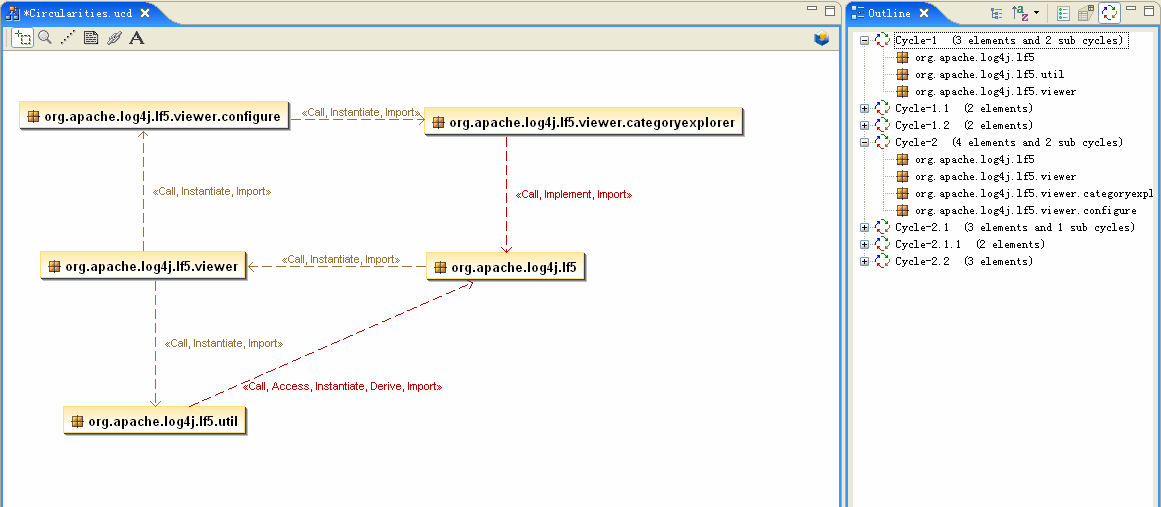

3. cycle outline
This page shows the information of cycle dependencies .

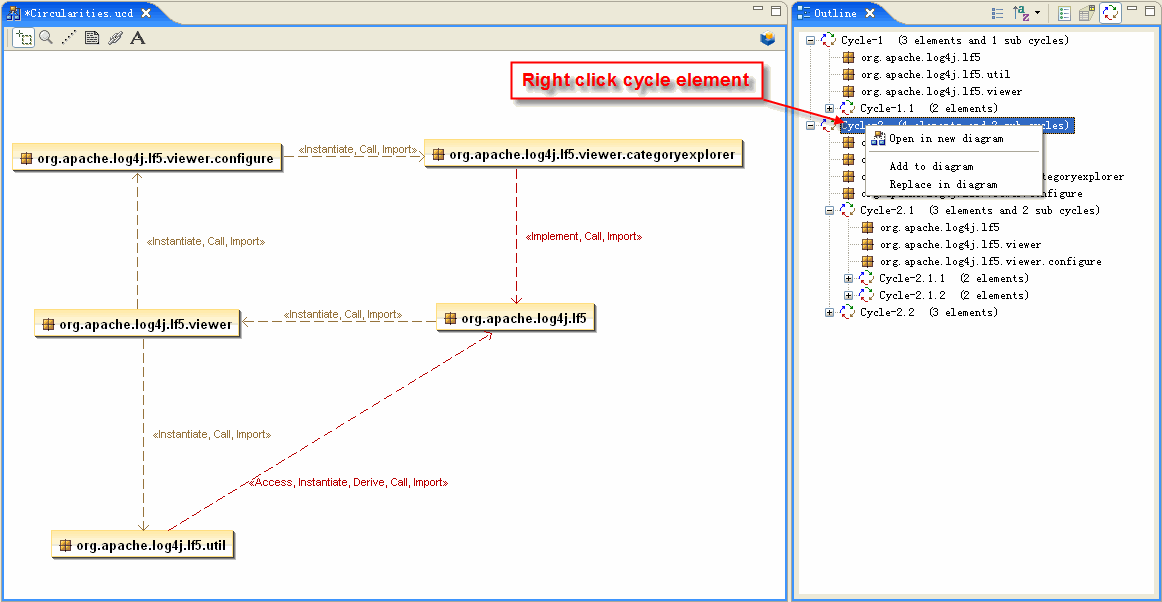

In cycle outline, popup menu are available on cycle element
Note that the cycles information come from the diagram creation wizard

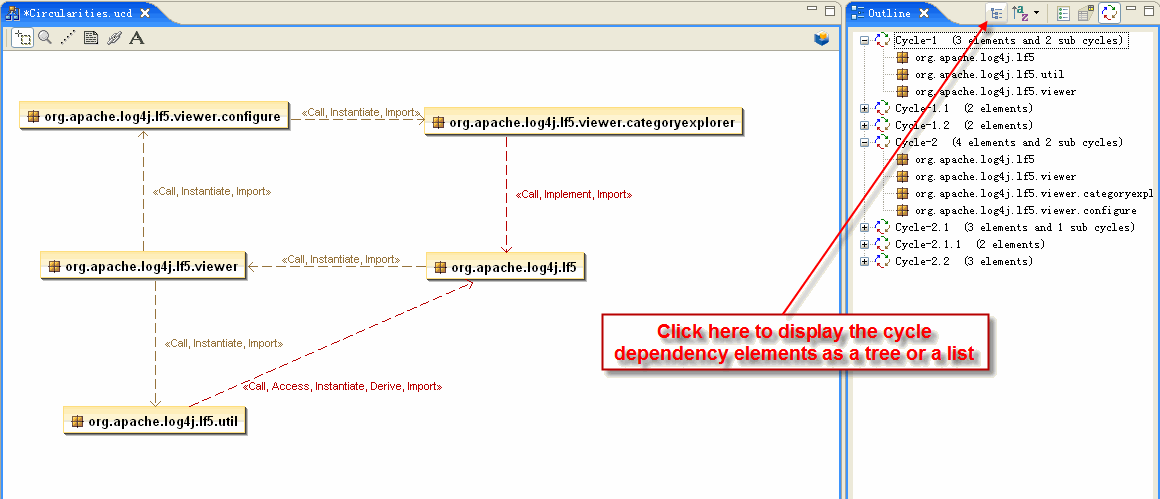

4. Flatten button
You can click this button to display the cycle dependency elements as a tree or a list in cycle outline page

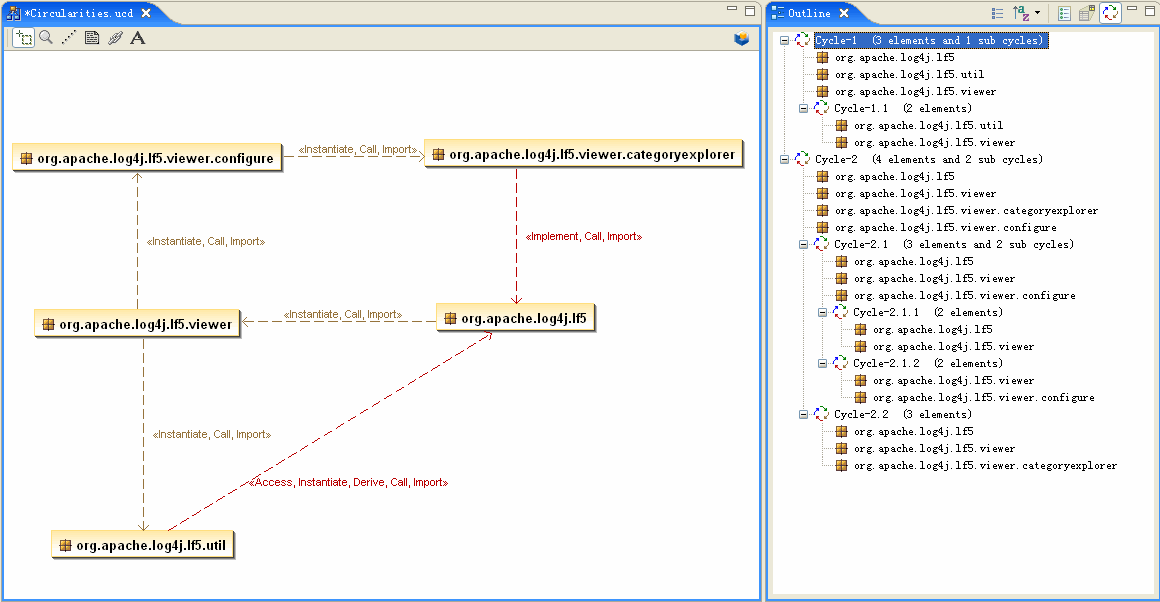

As the next screenshot shows, it displays the cycle dependency elements as a tree

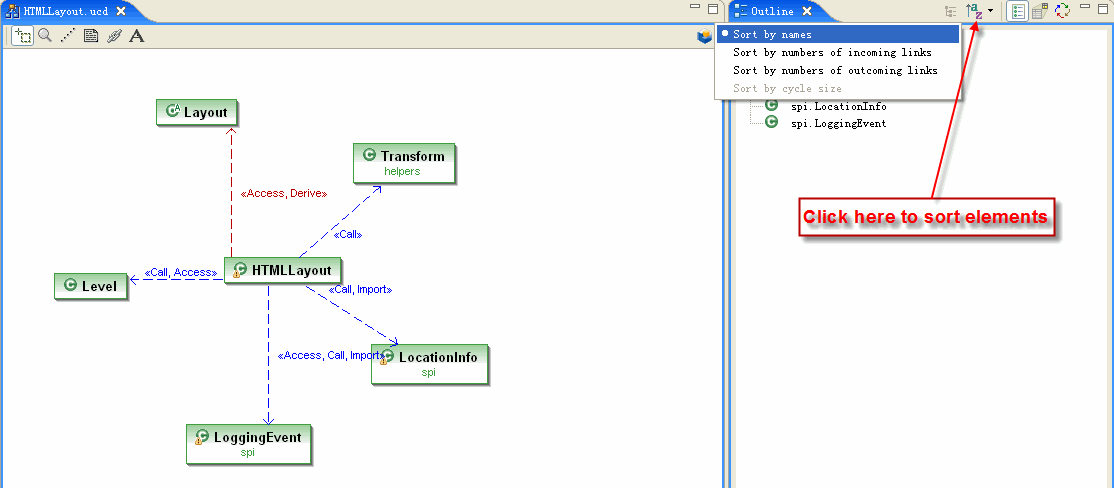

5. Sort button
You can sort the elements in outline page in three ways:
